5G Measurement Reporting Procedure Explained

Introduction

In 5G networks, the Measurement Reporting procedure allows the User Equipment (UE) to report radio signal measurements to the gNB.

These measurements help the network make mobility decisions such as:

• handovers
• cell reselection configuration
• radio resource optimization

Measurement reporting is essential for maintaining stable connectivity and optimal radio performance.

The procedure is defined by the 3rd Generation Partnership Project in:

• 3GPP TS 38.331 - NR RRC Protocol
• 3GPP TS 38.300 - NR Architecture

Why Measurement Reporting Is Needed

Mobile devices constantly move between cells.

To ensure seamless mobility, the network must know radio conditions of the serving cell and neighboring cells.

Measurement reporting enables the network to:

• detect signal degradation
• identify better neighboring cells
• trigger handover decisions

Network Elements Involved

UE (User Equipment)

Measures radio signals from the serving cell and neighboring cells.

gNB (Next Generation NodeB)

Configures measurement parameters and receives measurement reports.

Interfaces Used

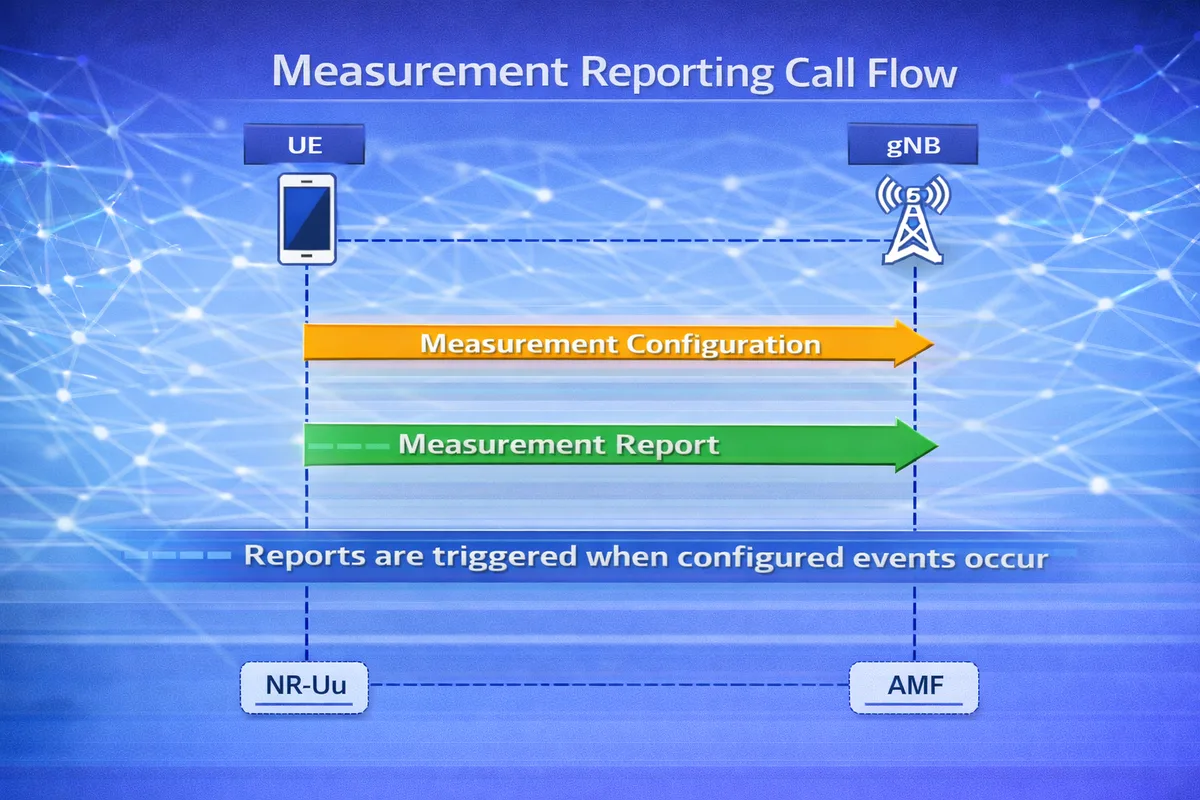

Measurement Reporting Call Flow

Below is the simplified signaling sequence.

UE                      gNB
 |                       |
 |<---Measurement Configuration---|
 |                       |
 |----Measurement Report--------->|

The gNB first configures measurement parameters, and the UE sends reports when specific events occur.

Step-by-Step Explanation

Step 1: Measurement Configuration

The gNB sends measurement configuration parameters to the UE through an RRC Reconfiguration message.

This configuration specifies:

• measurement objects
• reporting events
• reporting thresholds

Important parameters to check

Engineers should verify:

• measurement object configuration
• reporting events
• threshold values

Step 2: UE Performs Measurements

The UE continuously measures radio conditions.

Typical parameters measured include:

• RSRP (Reference Signal Received Power)
• RSRQ (Reference Signal Received Quality)
• SINR (Signal-to-Interference-plus-Noise Ratio)

Important parameters to check

Check:

• measurement accuracy
• measurement periodicity
• serving cell signal quality

Step 3: Event Trigger

Measurement reports are triggered when certain measurement events occur.

These events are defined in the measurement configuration.

Important parameters to check

Verify:

• event thresholds
• hysteresis values
• time-to-trigger configuration

Step 4: Measurement Report

Once the configured event occurs, the UE sends a Measurement Report to the gNB.

This report includes:

• serving cell measurements
• neighbor cell measurements
• measurement event identifier

Measurement Events in 5G

Several measurement events are defined in NR mobility procedures.

The A3 event is most commonly used for handover decisions.

Measurement Parameters

Measurement Reporting Use Cases

Troubleshooting Measurement Reporting

Missing Measurement Reports

Possible causes:

• incorrect measurement configuration
• event thresholds too high
• UE measurement issues

Incorrect Handover Trigger

Possible reasons:

• misconfigured A3 offsets
• incorrect hysteresis values
• measurement delay

Frequent Measurement Reports

Possible causes:

• low threshold values
• unstable radio environment
• incorrect time-to-trigger configuration

Key Messages in Measurement Reporting

Relevant 3GPP Specifications

The Measurement Reporting procedure is defined by the 3rd Generation Partnership Project in:

• 3GPP TS 38.331 - NR RRC Protocol
• 3GPP TS 38.300 - NR Architecture

Summary

The Measurement Reporting procedure enables the UE to report radio signal conditions to the network, helping the gNB make mobility decisions.

The process includes:

1. gNB sending measurement configuration
2. UE performing radio measurements
3. measurement events triggering reports
4. UE sending Measurement Report to the gNB

This mechanism is essential for handover management, mobility optimization, and radio performance monitoring in 5G networks.
